DDA 17-7

Заказать

Данные каталога DDA 17-7

Наименование продукцииDDA 17-7
Производственный номер97722176
EAN номер5710622723199

Описание DDA 17-7

DDA 17-7 DDA 17-7 FC-PP/E/C-F-31U2U2FG

The SMART Digital DDA is a compact positive displacement, diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be turned easily into front, left or right position. The click wheel and the multi-coloured backlit graphical, plain-text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover.

The sensor-based FlowControl (FC) system detects malfunctions directly in the dosing head and displays them in plain text in the alarm menu, e.g. air bubbles, line burst, overpressure. The integrated flow measurement function (only FCM) measures the actual flow and makes additional monitoring and control equipment redundant (accuracy of ± 1,5 % of set value in case of trouble-free process). The measured flow is displayed and can be integrated in the process control, e.g. SCADA. Furthermore, the AutoFlowAdapt function (only FCM) automatically adjusts the pump speed according to the process conditions to maintain target flow even at e.g. varying backpressure or air bubbles foaming (degassing drive strategy).

The dosing head is composed of: - Long lifetime and universal, chemically resistant full-PTFE diaphragm. - Double ball valves for highest dosing accuracy. - Deaeration valve for easy start-up. - Pressure sensor.

Operation modes: - Manual dosing in ml/h, I/h or gph. - Pulse control in ml/pulse (incl. memory function). - Analog control 0/4-20 mA (scalable). - Pulse-based batch function in ml, l or gal. - Timer-based batch function (Dosing timer, cycle or week). - Fieldbus control (Genibus prepared for ProfibusDP E-box).

Other features: - Auto deaeration during pump standby to avoid breakdowns due to air-locking.

Основные данные DDA 17-7

Type keyDDA 17-7 FC-PP/E/C-F-31U2U2FG
Max. Flow17 л/ч
Max. flow in slow mode 50%8.5 л/ч
Max. flow in slow mode 25%4.25 л/ч
Min flow17 ml/h
Turn-down ratio1:1000
Макс. рабочее давление7 бар
Данные на паспортной табличкеCE
Тип клапанаСтандартный
Maximum viscosity at 100 %300 mPas
Accuracy of repeatability1 %

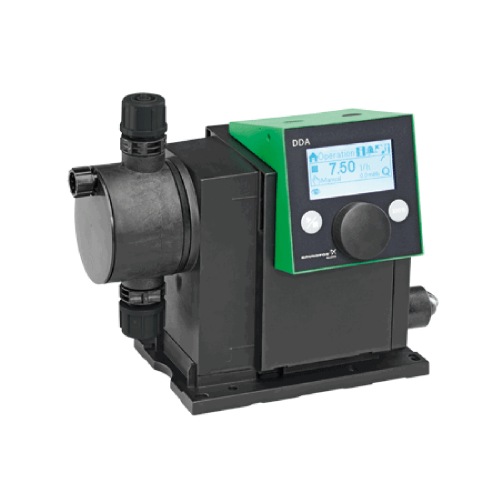

Изображение DDA 17-7

Изображение насосов DDA 17-7
Примечание к изображению: Внимание! Фотография продукта может отличаться от существующего.

Кривая характеристики DDA 17-7

Кривая характеристики насосов DDA 17-7

Жидкость DDA 17-7

Диапазон температур жидкости-10 .. 45 °C

Материалы DDA 17-7

Dosing headPP (полипропилен)
Шарик клапанаКерамика
ПрокладкаEPDM

Данные электрооборудования DDA 17-7

Максимальная подводимая мощность - P118 Вт
Номинальное напряжение1 x 100-240 V
Класс защиты (IEC 34-5)IP65 / NEMA 4X
Тип кабельной вилкиSCHUKO
Сетевой кабель1.5 м
Inrush current25A при 230В для 2мсек

Монтаж DDA 17-7

Диапазон температуры окружающей среды0 .. 45 °C
Макс. рабочее давление7 бар
Installation setНЕТ
Installation typeБез монтажного набора
Вход насосаHose 4/6, 6/9, 6/12, 9/12 mm
Выход насосаHose 4/6, 6/9, 6/12, 9/12 mm
Max. Suction lift during operation6 м
Max. Suction lift during priming3 м

Устр-ва управл-ия DDA 17-7

Вариант управленияFC
Панель управлениямонтируется на передней панели
Контроль уровняYES
Аналоговый вход0/4-20 мА
Pulse controlДА
Ext. Stop inputДА
Аналоговый выход0/4-20 мА
Output relays2
Bus communicationДА

Другое DDA 17-7

Нетто вес3 кг
Полный вес4 кг
ЦВЕТGREEN

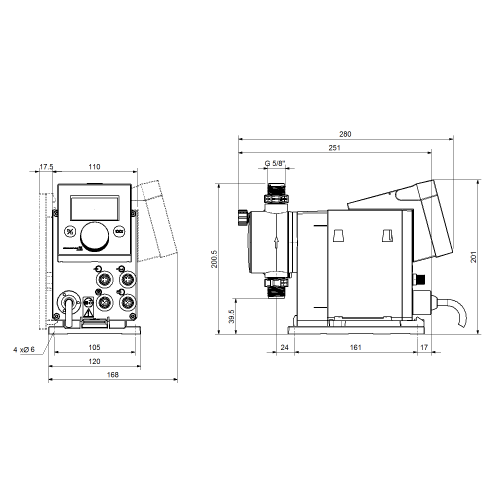

Габаритный чертеж DDA 17-7

Габаритный чертеж насосов DDA 17-7
ПримечаниеПравовая оговорка
Внимание! Все величины даны в [мм], если не указано иное.На данном упрощённом габаритном чертеже представлены не все компоненты.
