SLV.80.100.11.EX.4.50D

Заказать

Данные каталога SLV.80.100.11.EX.4.50D

Наименование продукцииSLV.80.100.11.EX.4.50D
Производственный номер96872087
EAN номер5700312449140

Описание SLV.80.100.11.EX.4.50D

SLV.80.100.11.EX.4.50D

Highly advanced pumps with many unique features. The Grundfos SL1 range with single-channel impeller are technologically advanced pumps designed for of municipal wastewater and industrial process water. These heavy-duty pumps are built for years of trouble-free operation in the most demanding applications. The pumps are for submerged installation, and are extremely reliable and very easy to service. The efficient single-channel impeller provides free passage of solids up to 100 mm. This greatly reduces the risk of clogging and ensures maximum up-time and reduced operating costs.

Advanced technology inside out The Grundfos SL1 pumps feature advanced technology inside out. In spite of their good looks, these highly efficient pumps are designed for years of trouble-free operation in the toughest environments. Easy to install and easy to service, the SL1 pumps ensure low long-term operating costs.

Watertight cable connection Polyurethane-filled stainless steel cable connection, hermetically sealed. Ensures that liquid cannot penetrate through the cable into the motor.

Short rotor shaft Compact motor construction with short rotor shaft reduces vibrations. Increases efficiency and lifetime of shaft seal and ball bearings.

Double mechanical shaft seal Efficient single-unit cartridge shaft seal system ensures longer operating time and less down-time. Easy to replace in the field without use of special tools.

Replaceable wear ring Easy replaceable stainless steel wear ring on single-channel impeller and rubber seal ring in the pump housing enable maintaining maximum pumping efficiency without replacing impeller.

Construction Extremely robust construction, with a smooth surface which prevents dirt and impurities from sticking to the pump.

Stainless steel clamp Unique stainless steel clamp assembling system enables quick and easy disassembly of pump from motor unit. No tools required. Provides easy access for service and inspection.

Modular design Each motor size fits several pump sizes with single-channel impeller hydraulics.

Operating conditions The Grundfos SL1 pumps are suitable for continuous submerged operation with a liquid level to the top of the motor, or intermittent submerged operation with a liquid level to the middle of the motor.

Explosion-proof versions For applications involving a risk of explosion, or where otherwise required, explosion-proof versions of the Grundfos SL1 pumps are available.

Основные данные SLV.80.100.11.EX.4.50D

Maкс. расход16.4 л/с
Макс. гидростатический напор6.6 м
Тип рабочего колесаСвободно-вихревое
Максимальный размер частицы80 мм
Первичное уплотнение валаSIC/SIC
Вторичное уплотнение валаCARBON/CERAMICS

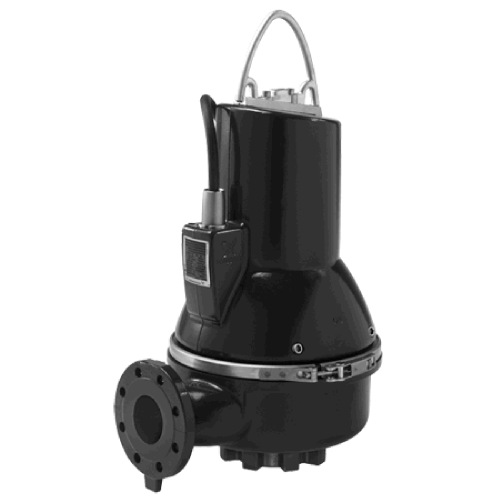

Изображение SLV.80.100.11.EX.4.50D

Изображение насосов SLV.80.100.11.EX.4.50D
Примечание к изображению: Внимание! Фотография продукта может отличаться от существующего.

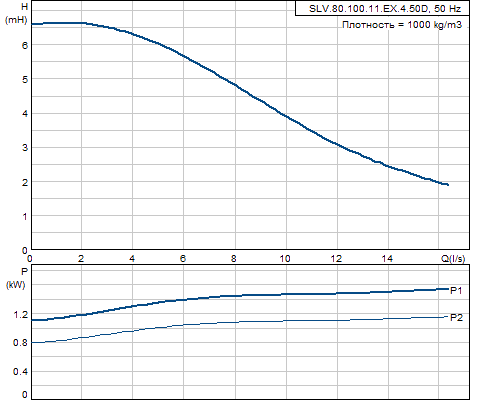

Кривая характеристики SLV.80.100.11.EX.4.50D

Кривая характеристики насосов SLV.80.100.11.EX.4.50D

Жидкость SLV.80.100.11.EX.4.50D

Максимальная температура жидкости40 °C

Материалы SLV.80.100.11.EX.4.50D

Корпус насосаDIN W.-Nr. GG20
Рабочее колесоDIN W.-Nr. GG20
ЭлектродвигательDIN W.-Nr. GG20

Данные электрооборудования SLV.80.100.11.EX.4.50D

Количество полюсов4
Подводимая мощность - P11.5 кВт
Номинальная мощность - P21.1 кВт
Промышленная частота50 Hz
Номинальное напряжение3 x 380-415 V
Допуст.откл-е напряж+10/-10 %
Способ запускапрямой пуск
Макс. число пусков в час20
Номинальный ток3 A
Расчетное значение тока от 3/4 нагрузки2.4 A
Расчетное значение тока от 1/2 нагрузки2.1 A
Пусковой ток20 A
Расчетное значение тока без нагрузки1.6 A
Cos phi - коэф-нт мощности0,75
Cos phi - коэф. мощности при 3/4 нагрузки0,68
Cos phi - коэф. мощности при 1/2 нагрузки0,58
Номинальная скорость1450 об/м
КПД двигателя при полной нагрузке75,2 %
КПД двигателя при 3/4 нагрузки72,7 %
КПД двигателя при 1/2 нагрузки67,2 %
Класс защиты (IEC 34-5)68
Класс изоляции (IEC 85)F
Стандарт. Ex-защитыY
Защита электродвигателяТЕРМОВЫКЛЮЧАТЕЛЬ
Длина кабеля10 м
Тип кабеляLYNIFLEX

Монтаж SLV.80.100.11.EX.4.50D

Максимальная температура окружающей среды40 °C
Вход насоса80
Выход насоса100
Максимальная глубина установки20 м
Установка сухая / мокраяS
Монтажвертикальный
Модельный рядB

Устр-ва управл-ия SLV.80.100.11.EX.4.50D

Дополнительный I/OExternal
Датчик влажностибез гигрометра
Датчик воды в маслебез водно-масляным датчиком

Другое SLV.80.100.11.EX.4.50D

Нетто вес95 кг

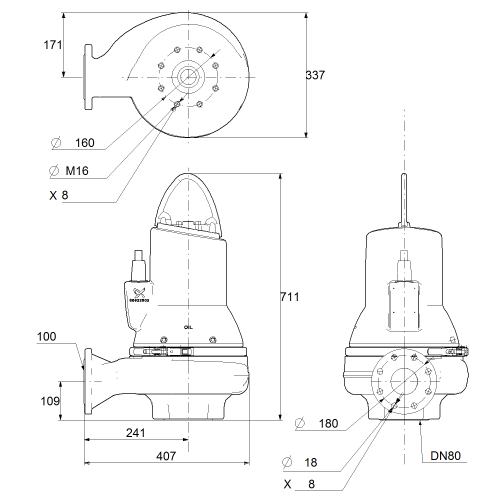

Габаритный чертеж SLV.80.100.11.EX.4.50D

Габаритный чертеж насосов SLV.80.100.11.EX.4.50D
ПримечаниеПравовая оговорка
Внимание! Все величины даны в [мм], если не указано иное.На данном упрощённом габаритном чертеже представлены не все компоненты.

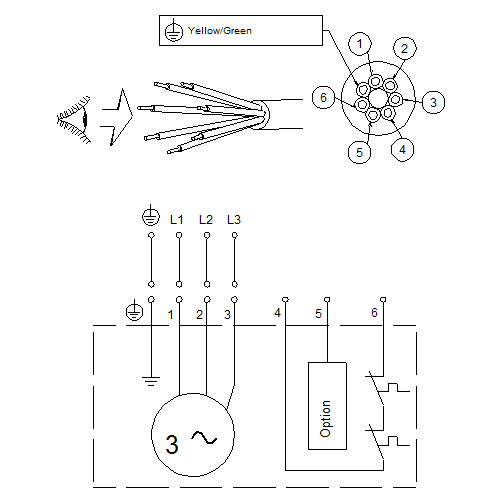

Схема подключений SLV.80.100.11.EX.4.50D

Схема подключений насосов SLV.80.100.11.EX.4.50D
